| Brand Name: | KTS |
| Model Number: | M/SM/SM-5 |
| MOQ: | 100 PIECES |
| Payment Terms: | T/T |
| Supply Ability: | 100000 Piece/Pieces Month |

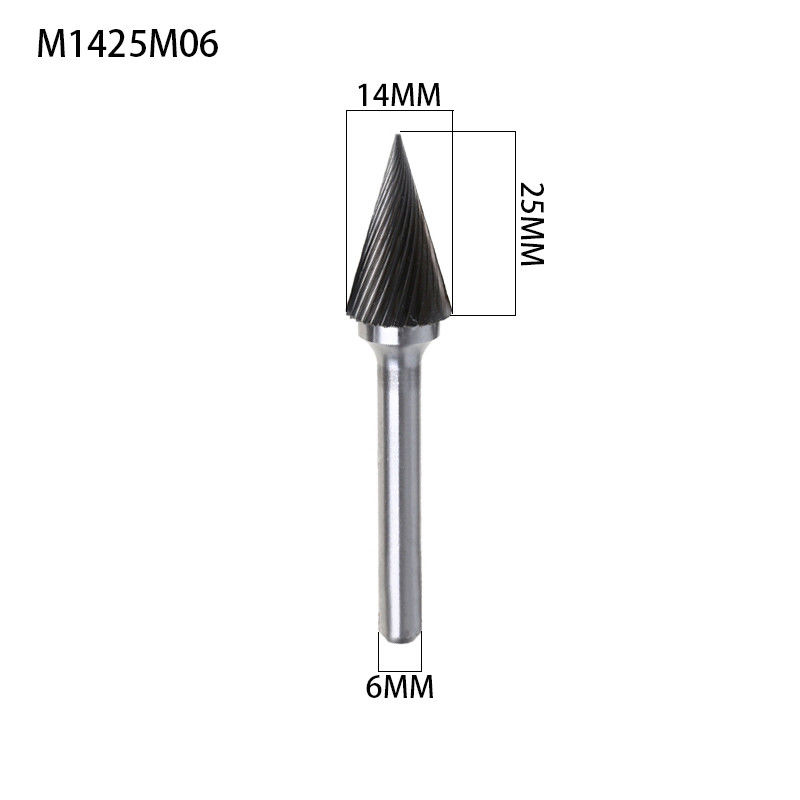

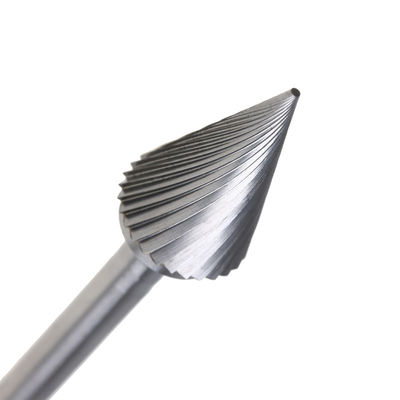

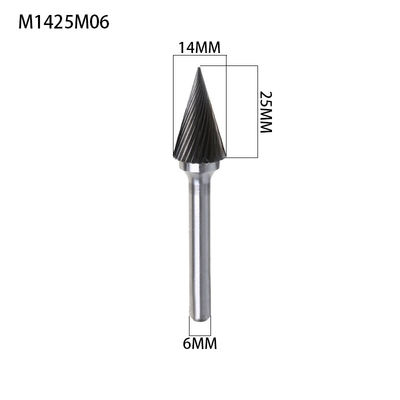

Tungsten Grinder Carbide Burr 1/4" Shank SB-5 Double Cut Die Grinder Bits And Rotary Bits - Cutting Burrs For Fordom
Technical date
| S.N. | MATERIAL |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to running speeds
|
mat nr. MAX RPM |
3mm/0.123" 90,000 |
6mm/0.250" 50,000 |
10mm/0.375" 40,000 |
12mm/0.500" 35,000 |
16mm/0.625' 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18.000 |
Notes
• It may be necessary to adjust the display rate to achieve the best performance.
• Harder materials require slower speeds.
• Smaller burs require faster speeds.
• Extra long burs (>150 mm long) require a slower speed.
• Keep moving and gently press while in use.
• Running at slower than optimal speed will encourage chips.
• Running at a speed higher than optimal will cause tooth wear.
• Making the tool too hot may cause the braze to melt and separate the bit from the shank.
• The use of worn tools and chucks will encourage debris.
• Do not sink the bur more than one-third of its periphery.
