| Brand Name: | KTS |
| Model Number: | Custom |
| MOQ: | 100 Pieces |
| Price: | $1-$10/Piece |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 250000 Piece/Pieces per Month |

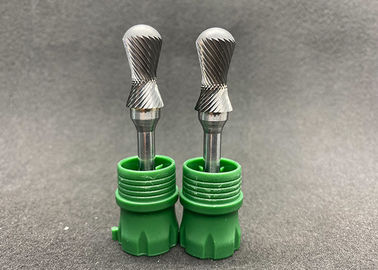

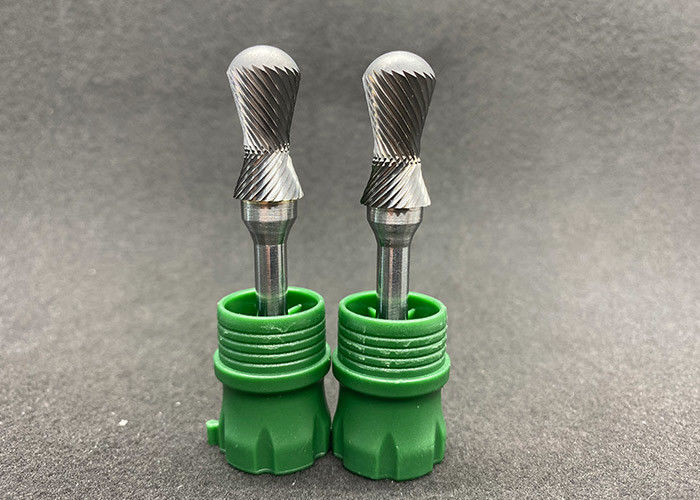

CNC Engraving Carbide Wood Carving Bits Good Mechanical Stability
Carbide Burrs Kits/Case
Carbide burr kits are available in a variety of shapes for various applications, including general deburring. These kits are very popular among tool manufacturers and maintenance engineers, and are an ideal complement to any comprehensive tool kit.
6mm Shank Kits/Case
The 5-piece double-cut 6mm handle burr includes the following burrs:
B122506 DC, C122506 DC, D121206 DC, F122506 DC and L122806 DC.
3mm Shank Kits/Case
10 double cut 3mm calf burr set includes the following burrs:
A031403 DC, B031403 DC, C031403 DC, D030303 DC, E030603 DC, F031203 DC, G031203 DC, H030603 DC, L031003 DC and M031203 DC.
For more information about our cemented carbide burrs, please refer to the cemented carbide burrs brochure, or contact us for technical application advice.

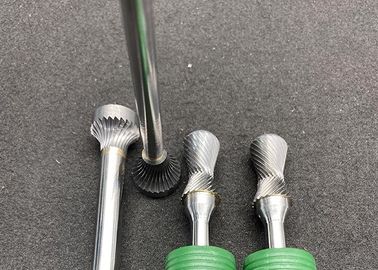

Tungsten Carbide Rotary Burrs
We manufacture rotary burrs from a superior grade of carbide to provide high stock removal rates and long life. Our comprehensive range of shapes, sizes and fluting styles ensures we can offer a tool that meets the most demanding application.
The difference between double slot and single slot:
The double groove has a cross pattern, which is suitable for low-density objects. For example: used for wood, plastic, aluminum, etc.! The cross pattern has a fast chip removal speed, and it is not easy to block the pattern when grinding and engraving, so it is more suitable to open a double groove on a soft object!
The texture of the single groove determines that it is not ideal to use softer objects, because when the single groove knife is working and cutting, the broken waste will easily block the groove, resulting in shallower groove texture and reduced cutting ability; this is what we often say, The knife is not fast! Single slot is more suitable for iron, copper, steel and other hard objects.
Carbide rotary file features:
Cemented carbide has a series of excellent properties such as high hardness, wear resistance, good strength and toughness, and heat resistance, especially its high hardness and wear resistance, which remain basically unchanged even at a temperature of 500°C. It still has high hardness at 1000°C.
Cemented carbide is widely used as tool materials, such as turning tools, milling cutters, planers, drills, boring cutters, etc., for cutting cast iron, non-ferrous metals, plastics, chemical fibers, graphite, glass, stone and ordinary steel, and can also be used for cutting resistant Hot steel, stainless steel, high manganese steel, tool steel and other difficult-to-process materials.
1. High hardness (86~93HRA, equivalent to 69~81HRC);
2. Good hot hardness (up to 900~1000℃, keeping 60HRC);
3. Good abrasion resistance.
The cutting speed of cemented carbide tools is 4 to 7 times higher than that of high-speed steel, and the tool life is 5 to 80 times higher. Manufacturing molds, measuring tools, life span is 20-150 times longer than alloy tool steel. It can cut hard materials around 50HRC.
Technical date
| S.N. | MATERIAL |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to running speeds
|
mat nr. MAX RPM |
3mm/0.123" 90,000 |
6mm/0.250" 50,000 |
10mm/0.375" 40,000 |
12mm/0.500" 35,000 |
16mm/0.625' 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
Tungsten carbide burs are manufactured in compliance with the highest standards. Our comprehensive product portfolio offers a broad range of reliable and market-proven solutions for every application. Our know-how and expertise allow us to continuously improve our offering to provide outstanding quality and deliver excellent performance across a wide range of industries, optimizing processes in regards to economic efficiency, safety and process optimisation.
Matters needing attention:
1. Mainly used on electric or pneumatic tools.
2. The speed is generally 6000-50000 rpm.
3. When using, the tool should be clamped upright, and the cutting method should be up-cut milling to avoid reciprocating cutting.
4. To prevent chip splashing during work, please use protective glasses.
