Carbide Rotary Burr
Created with Pixso.

Silver Color Tungsten Carbide Bur , Carbide Rotary Files YG6 / YG8 / YG10X

Silver Color Tungsten Carbide Bur , Carbide Rotary Files YG6 / YG8 / YG10X

Brand Name: KTS
Model Number: OVAL SHAPE
MOQ: 100 PIECES
Price: USD 1-10/PIECE
Payment Terms: L/C, T/T, Western Union
Supply Ability: 250000 Piece/Pieces per Month
Detail Information
Place of Origin:
SICHUAN, CHINA
Certification:
ISO9001:2008
NAME:
CARBIDE ROATRY BURR
MATERIAL:
TUNGSTEN CARBIDE
GRADE:
YG6/YG8/YG10X
SIZE:
6MM-25MM
COLOR:
SILVER
SAMPLE:
AVAILABLE
OEM/ODM:
AVAILABLE
PORT:
SHANGHAI/GUANGZHOU/SHENZHEN
Packaging Details:
PLASTIC CASE
Highlight:

rotary burr cutter

,

carbide rotary file

Product Description

Silver Color Tungsten Carbide Bur , Carbide Rotary Files YG6 / YG8 / YG10X

Product Specification

  1. Material: 100% of raw materials.
  2. Tolerance: strict tolerance extent control, which can reach +/-0.01mm;
  3. Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.
  4. Types: standard, conical, parabolic,ballistic
  5. Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.
Product Name:Silver Color Tungsten Carbide Burr , Carbide Rotary Files YG6 / YG8 / YG10X
MOQ:20pcs / Size
Lead Time:15-25 Days
Specification:Standard Or Customized
Loading Port:Shanghai/ Beijing/ Yiwu/ Guangzhou(Canton)/ Qingdao/ Chengdu
Trading Terms:FCA/ FOB/ CFR/ DAP
Payment Method:TT/ LC / WESTERN UNION
Payment Terms:30% Deposit Plus Balance / Negotiable



Size Rage of Each Types

  • Head dia 3-35mm
  • Shank dia 3,6.8mm
  • Increase length are ok.

Sets for tungsten carbide rotary burrs

  • 8 pcs in aluminum sets

  • 8 pcs in plastic sets

  • The items can be selectable according to client demand.

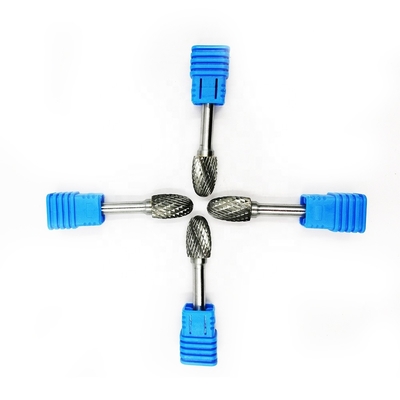

Silver Color Tungsten Carbide Bur , Carbide Rotary Files YG6 / YG8 / YG10X 0

Recommended Grade:
YG8, YG10X for carbide head,steel for shank diameter.

Tolerence of Type E

  • Head diameter is +0.3 to +0.5mm

  • Head cutting part is +0.5 to 1.0mm

  • Shank diameter is +0 to +0.04mm

  • Totel length is +-0.1mm

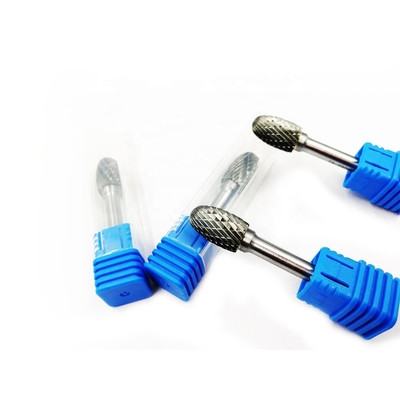

Silver Color Tungsten Carbide Bur , Carbide Rotary Files YG6 / YG8 / YG10X 1

Application


Tungsten Flame carbide rotary burrs sets are more and more widely used in the world for increasing working efficiency to realize the mechanization. It is used mainly as below:
  1. Machining the metal cavity, remove the burrs or welds of steels, cast iron and so on.
  2. Chamfering, rounding, grooving of mechanic parts.
  3. Impeller porting.
  4. Polishing the surface of precision parts.
  5. Engraving arts on metallic or non-metallic parts.

Silver Color Tungsten Carbide Bur , Carbide Rotary Files YG6 / YG8 / YG10X 2

Material of Carbide Rotary Flies

The standard tungsten carbide grade is YG8, which is of ware-resistance and high strength.
Composition and physical performance is like below:

  1. Composition is 92% WC and 8% Cobalt.
  2. Density 14.5-14.9 g/cm3.
  3. Hardness: 89 HRA.

Silver Color Tungsten Carbide Bur , Carbide Rotary Files YG6 / YG8 / YG10X 3

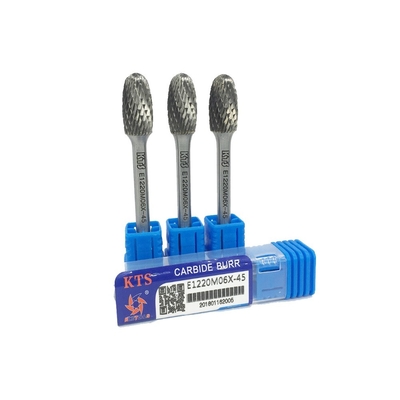

Packaging & Delivery

  • Individual box with blue cap
  • Transparent extended box ( for long shank burr)
  • Each carbide grinding burr will with blue cap

Silver Color Tungsten Carbide Bur , Carbide Rotary Files YG6 / YG8 / YG10X 4
