| Brand Name: | KTS、WUWTOOLS |
| Model Number: | SH Flame Shape Best Carbide Burr for Steel |
| MOQ: | 100 PIECES |
| Price: | USD1-10/ PIECE |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 250000 PIECES PER MONTH |
Product Discription
Shank Sizes
We provide Pointed Tree Diamond Cut Carbide Burr of 6mm (1/4”) and 3mm (1/8”) shank diameter. WUWTOOLS supplies a complete range of 1/4”or 6mm shank burr bits, which are offered in both inch and metric sizes. They are used on air die grinders(pneumatic rotary tools), flexible shafts, spindle grinders, straight grinders, robots, and even CNC machines.
The 3mm or 1/8”shank burr cutters are widely used on metal, wood, glass, stone, and plastics. They fit most hobby rotary tools, such as Dremel, Wen, and Tacklife. These carbide cutters have proven excellent performance in wood carving, model engineering, jewelry making, engraving, sculpting, and casting.
Cut Types of Pointed Tree Diamond Cut Carbide Burr:
Single-cut burs:are for general purpose work and provide good material removal.
Double-cut burs:produce smaller chips for greater operator control on applications such as stainless steels and ferrous materials.
Aluma-cut burs:have a wide flute design for easy stock removal without loading on applications such as nonferrous and soft materials.
Standard-cut burs:are widely uesed and leave a fine finish.

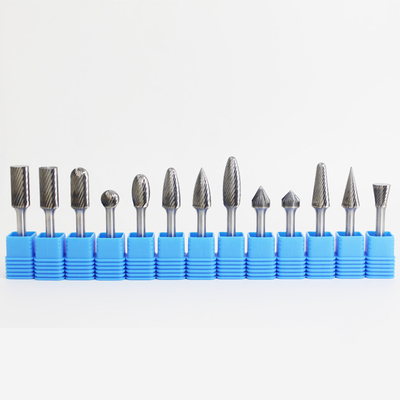

All Shapes (A–N):
SA Cylindrical Shape
SB Cylindrical with End Cut
SC Cylindrical Ball Nose
SD Ball Shape
SE Oval Shape
SF Tree Shape
SG Point Tree Shape

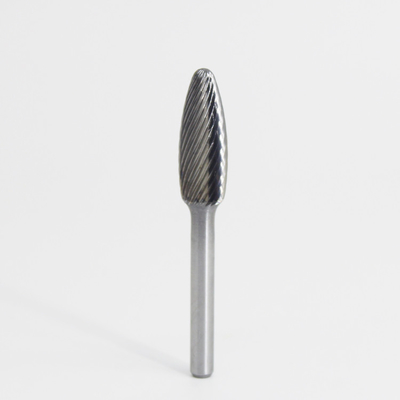

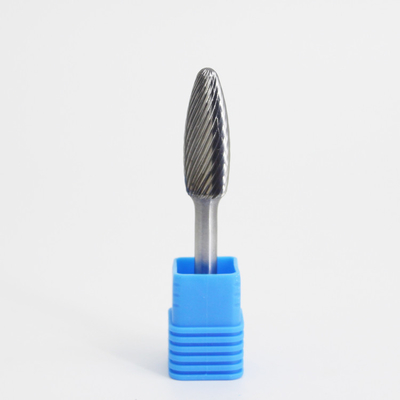

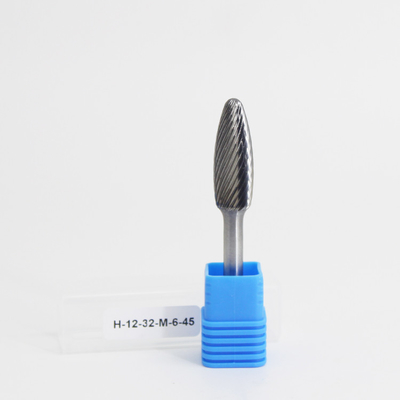

SH Flame Shape
SJ 60-degree countersink
SK 90-degree countersink
SL Ball Nosed Cone Shape
SM Cone Shape
SN Inverted Cone Shape
Type H Size Chart:
| Metric Size | |||||||
|
Type H
Flame Shape Best Carbide Burr for Steel |
Shank Diameter(mm) |
Cut Diameter(d1) |
Cut Length(l2) |
Shank Diameter(d2) |
Over Length(l1) |
Tools NO. | Type |
| 3 | 3 | 6 | 3 | 38 | SH30306 | Solid | |
| 4 | 13 | 3 | 51 | SH30413 | Brazed | ||
| 5 | 13 | 3 | 51 | SH30513 | Brazed | ||
| 6 | 13 | 3 | 51 | SH30613 | Brazed | ||
| 6 | 6 | 16 | 6 | 50 | SH60616 | Solid | |
| 6 | 18 | 6 | 63 | SH60618 | Brazed | ||
| 8 | 20 | 6 | 65 | SH60820 | Brazed | ||
| 10 | 25 | 6 | 70 | SH61025 | Brazed | ||
| 12 | 32 | 6 | 77 | SH61232 | Brazed | ||
| 16 | 36 | 6 | 81 | SH61636 | Brazed | ||
| 19 | 41 | 6 | 86 | SH61941 | Brazed | ||
| 8 | 10 | 25 | 8 | 70 | SH81025 | Brazed | |
| 12 | 32 | 8 | 77 | SH81232 | Brazed | ||
| 16 | 36 | 8 | 81 | SH81636 | Brazed | ||
| 19 | 41 | 8 | 86 | SH81941 | Brazed | ||
| Inch Size | |||||||
| Shank Diameter(In) |
Cut Diameter(d1) |
Cut Length(l2) |
Shank Diameter(d2) |
Over Length(l1) |
Tools NO. | Type | |
| 1/8 | 1/8 | 1/4 | 1/8 | 1-1/2 | SH-41 | Solid | |
| 1/4 | 1/2 | 1/8 | 2 | SH-51 | Brazed | ||
| 1/4 | 1/4 | 5/8 | 1/4 | 2 | SH-1 | Solid | |
| 1/4 | 5/8 | 1/4 | 2-3/8 | SH-1 | Brazed | ||
| 5/16 | 3/4 | 1/4 | 2-1/2 | SH-2 | Brazed | ||
| 3/8 | 1 | 1/4 | 2-3/4 | SH-3 | Brazed | ||
| 1/2 | 1-1/4 | 1/4 | 3 | SH-5 | Brazed | ||
| 5/8 | 1-7/16 | 1/4 | 3-1/5 | SH-6 | Brazed | ||
| 3/4 | 1-5/8 | 1/4 | 3-3/8 | SH-7 | Brazed | ||
Product Application
Flame Shape Carbide Burr are widely used in industrial sectors such as machinery, aviation, automobile, shipbuilding, chemical engineering, and process engraving. The main usage are as follows:
Advantages of Flame Shape Carbide Burr
Packaging & Delivery
